Sumitomo

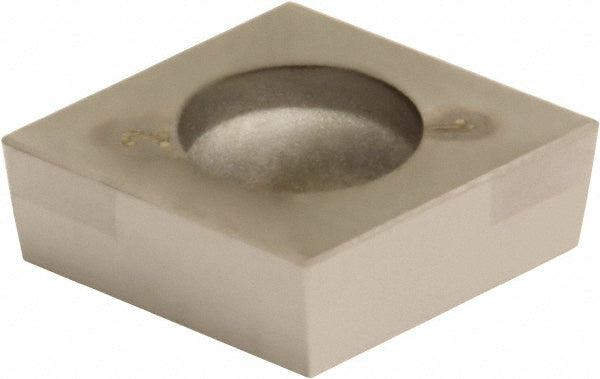

2NC-CCGW060204 Polycrystalline Cubic Boron Nitride Insert, Grade BNC200, TiN - Sumitomo 16DTASZ
MFR# 16DTASZISO/ANSI# 2NC-CCGW060204Series C
$75.97List $97.44
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo 16DTASZ is a 2NC-CCGW060204 polycrystalline cubic boron nitride indexable insert, grade BNC200, TiN coated.
Specifications
Ansi code2NCCCGA21.51
Chip breakerA
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1100
Included angle80.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.0906
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code21.51
Insert style2NC-CCGA
Insert thickness in3/32
Iso code2NC-CCGW060204
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges2
RakePositive
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
