Sumitomo

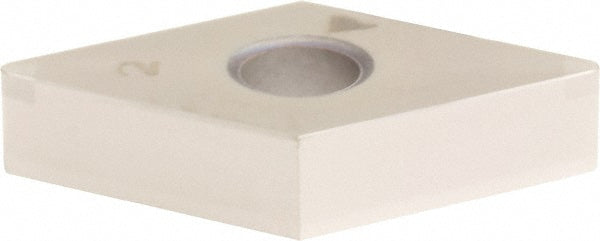

2NC-DNGA150408 PCBN Insert, Grade BNC200, TiN - Sumitomo 16DTBKE
MFR# 16DTBKEISO/ANSI# DNGA150408Series DNG
$67.85List $85.50
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeBNC200
MaterialPCBN
CoatingTiN
Description
The Sumitomo 16DTBKE is a 2NC-DNGA150408 pcbn indexable insert, grade BNC200, TiN coated. Suited for cast iron, hardened steel, superalloy.
Specifications
Ansi insert codeDNGA432
Ansi size code432
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0827
Insert materialPCBN
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso code2NC-DNGA150408
Iso insert codeDNGA150408
Iso size code150408
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges2
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
