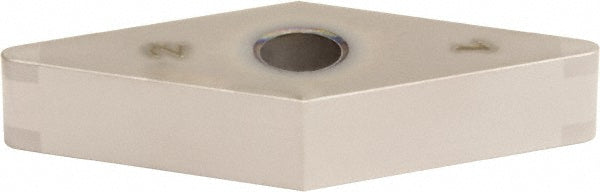

4NC-VNGA160404 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC200, TiN - Sumitomo 16DTCEK
MFR# 16DTCEKISO/ANSI# 4NC-VNGA160404Series VNGA
$121.90List $153.62
Save 20%
Stock and current price confirmed on request. Ask us →
We check the supplier's stock and today's price for this item before you order, and reply the same business day.
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiN
Description
The Sumitomo 16DTCEK is a 4NC-VNGA160404 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BNC200, TiN coated. Suited for cast iron, superalloy.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1102
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code331
Insert style4NC-VNGA
Insert thickness in3/16
Iso code4NC-VNGA160404
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
