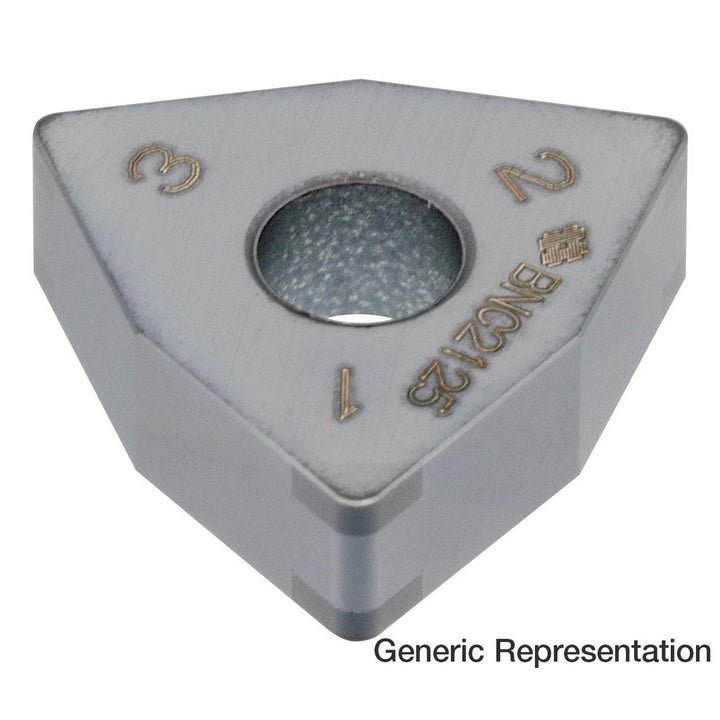

6NC-WNGA080408 Polycrystalline Cubic Boron Nitride Insert, Grade BNC200, TiN - Sumitomo 16DTCEP

Sumitomo

6NC-WNGA080408 Polycrystalline Cubic Boron Nitride Insert, Grade BNC200, TiN - Sumitomo 16DTCEP

MFR# 16DTCEPISO/ANSI# 6NC-WNGA080408Series WNGA

$154.62List $198.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTrigon
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN

Description

The Sumitomo 16DTCEP is a 6NC-WNGA080408 polycrystalline cubic boron nitride indexable insert, grade BNC200, TiN coated. Suited for cast iron, hard material, superalloy.

Specifications

Ansi code6NCWNGA432
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTrigon
Insert size code432
Insert style6NC-WNGA
Insert thickness in3/16
Iso code6NC-WNGA080408
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges6
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
