Sumitomo

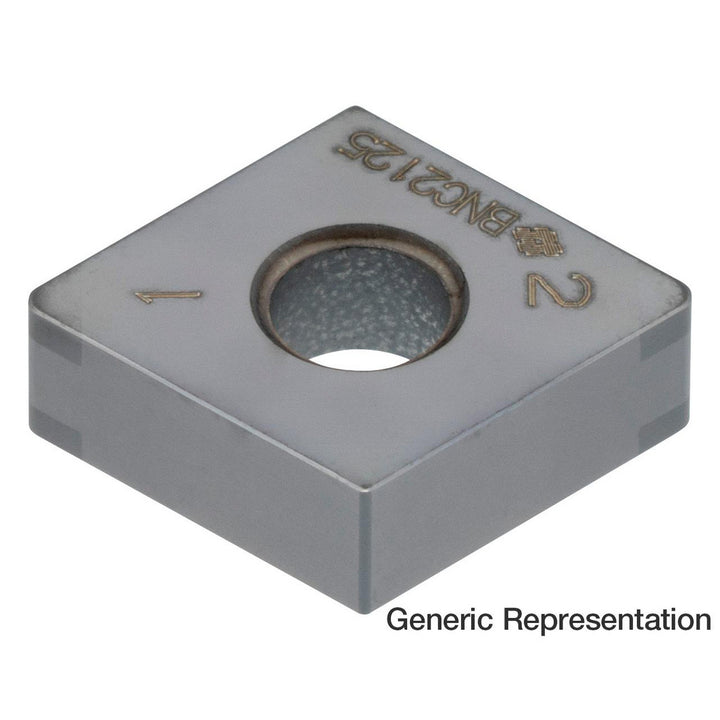

4NC-CNGA120408W Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC200, TiN - Sumitomo 16DTCES
MFR# 16DTCESISO/ANSI# 4NC-CNGA120408WSeries C
$121.02List $155.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC200
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiN
Description
The Sumitomo 16DTCES is a 4NC-CNGA120408W polycrystalline cubic boron nitride (pcbn) indexable insert, grade BNC200, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code432
Insert style4NC-CNGA
Insert thickness in3/16
Iso code4NC-CNGA120408W
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges4
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO 13399
Tolerance codeG
Wiper edgeYes
