Sumitomo

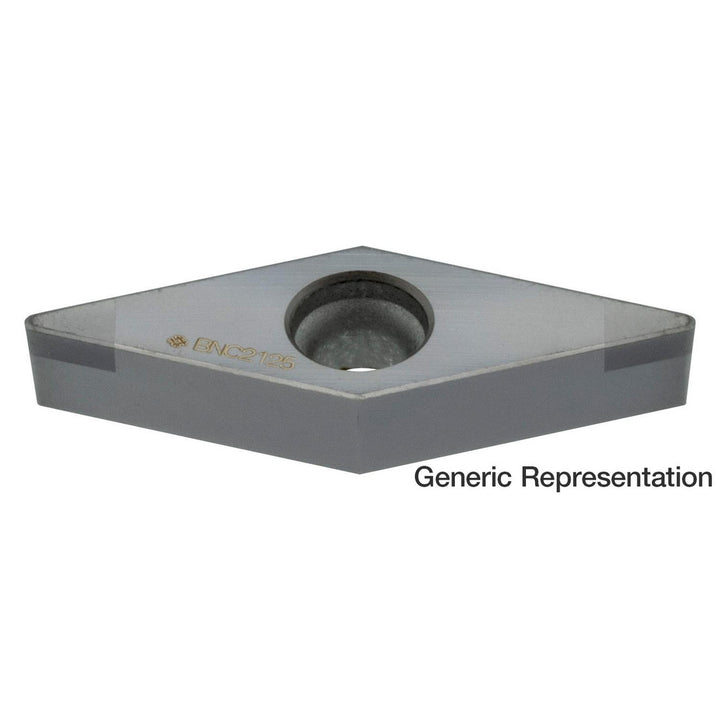

2NC-VCGW160404 PCBN Insert, Grade BNC200, TiN - Sumitomo 16DTCEU
MFR# 16DTCEUISO/ANSI# VCGA160404Series V
$73.76List $94.59
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeBNC200
MaterialPCBN
CoatingTiN
Description
The Sumitomo 16DTCEU is a 2NC-VCGW160404 pcbn indexable insert, grade BNC200, TiN coated.
Specifications
Ansi insert codeVCGA331
Ansi size code331
Chip breakerA
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.1732
Included angle35
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1102
Insert materialPCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVCGA
Insert thickness in3/16
Iso code2NC-VCGW160404
Iso insert codeVCGA160404
Iso size code160404
Manufacturer gradeBNC200
Maximum depth of cut0.0150
Number of cutting edges2
Relief angle7
Secondary workpiece materialSteel
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
