Sumitomo

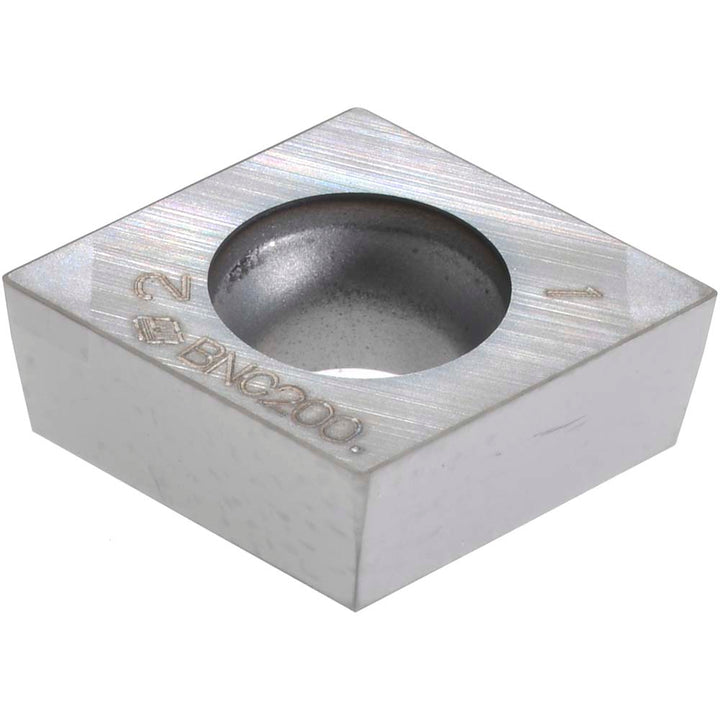

2NCCCGW09T302WG Cubic Boron Nitride (CBN) Insert, Grade BNC200, TiAlN - Sumitomo 16DTWDN
MFR# 16DTWDNISO/ANSI# 2NCCCGW09T302WGSeries C
$82.61List $105.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeBNC200
MaterialCubic Boron Nitride (CBN)
CoatingTiAlN
Description
The Sumitomo 16DTWDN is a 2NCCCGW09T302WG cubic boron nitride (cbn) indexable insert, grade BNC200, TiAlN coated.
Specifications
Chip breakerA
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0078
Full radiusNo
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.0984
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code21.52
Insert styleCCGA
Insert thickness in3/32
Iso code2NCCCGW09T302WG
Manufacturer gradeBNC200
Material gradeH20
Multi use toolYes
Number of cutting edges2
RakePositive
Rake angle0
Relief angle7
Secondary workpiece materialSteel
StandardsANSI; ISO 13399
Tolerance codeG
Wiper edgeYes
