Sumitomo

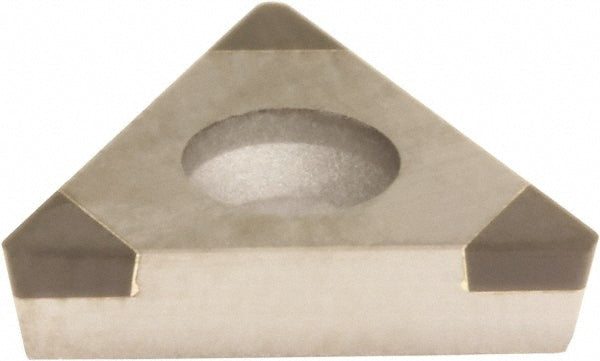

3NU-TCGW110208 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN700 - Sumitomo 16FSW34
MFR# 16FSW34ISO/ANSI# 3NU-TCGW110208Series T
$88.89List $114.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeBN700
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Sumitomo 16FSW34 is a 3NU-TCGW110208 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BN700. Suited for cast iron, superalloy.
Specifications
Chip breakerA
Clearance codeC
Corner radius in1/32
Hole diameter0.1100
Included angle60
Inscribed circle in1/4
Insert holding methodScrew
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeTriangle
Insert size code21.52
Insert style3NU-TCGA
Insert thickness in3/32
Iso code3NU-TCGW110208
Manufacturer gradeBN700
Maximum depth of cut0.0150
Number of cutting edges3
Primary workpiece materialCast Iron; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
