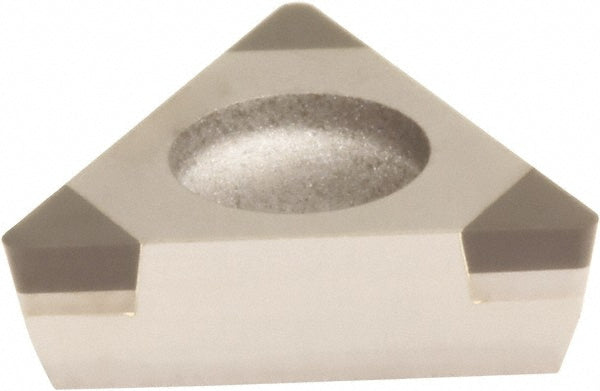

3NU-TPGW110308 Polycrystalline Cubic Boron Nitride Insert, Grade BN700 - Sumitomo 16FSW3J

Sumitomo

3NU-TPGW110308 Polycrystalline Cubic Boron Nitride Insert, Grade BN700 - Sumitomo 16FSW3J

MFR# 16FSW3JISO/ANSI# 3NU-TPGW110308Series TPG

$88.89List $114.00 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeTriangle
GradeBN700
MaterialPolycrystalline Cubic Boron Nitride

Description

The Sumitomo 16FSW3J is a 3NU-TPGW110308 polycrystalline cubic boron nitride indexable insert, grade BN700. Suited for cast iron, hardened steel, superalloy.

Specifications

Ansi code3NUTPGA222
Chip breakerA
Clearance codeP
Coating processUncoated
Corner radius in1/32
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.0866
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code222
Insert style3NU-TPGA
Insert thickness in1/8
Iso code3NU-TPGW110308
Manufacturer gradeBN700
Maximum depth of cut0.0150
Number of cutting edges3
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
