Sumitomo

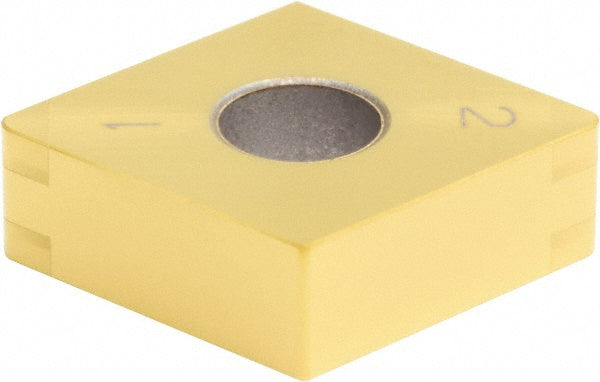

4NC-CNGA120408 Polycrystalline Cubic Boron Nitride Insert, Grade BNC300, TiN - Sumitomo 16GBCHB
MFR# 16GBCHBISO/ANSI# 4NC-CNGA120408Series C
$113.16List $145.13
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC300
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo 16GBCHB is a 4NC-CNGA120408 polycrystalline cubic boron nitride indexable insert, grade BNC300, TiN coated. Suited for hardened steel.
Specifications
Ansi code4NCCNGA432
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code432
Insert style4NC-CNGA
Insert thickness in3/16
Iso code4NC-CNGA120408
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Number of cutting edges4
Primary workpiece materialHardened Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
