Sumitomo

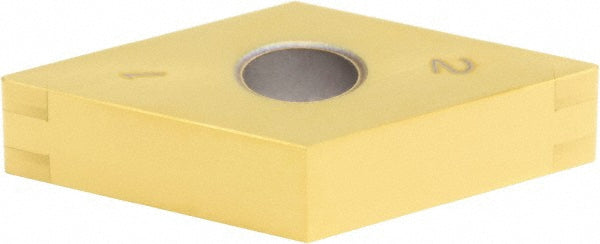

Diamond 1/2" IC Polycrystalline Cubic Boron Nitride Insert, Grade BNC300, TiN - Sumitomo 16GBCHD
MFR# 16GBCHDSeries D
$143.97List $181.43
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC300
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo 16GBCHD is a polycrystalline cubic boron nitride indexable insert, grade BNC300, TiN coated. Suited for steel.
Specifications
Ansi code4NCDNGA431
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code431
Insert style4NC-DNGA
Insert thickness in3/16
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Primary workpiece materialSteel
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
