Sumitomo

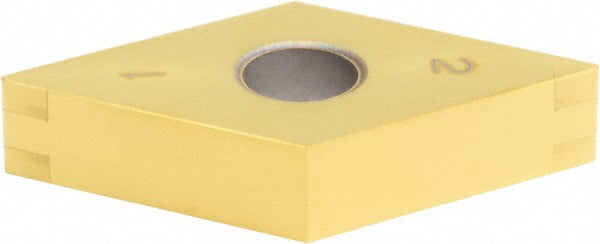

4NC-DNGA150408 PCBN Insert, Grade BNC300, TiN - Sumitomo 16GBCHE
MFR# 16GBCHEISO/ANSI# DNGA150408Series D
$125.19List $160.56
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeBNC300
MaterialPCBN
CoatingTiN
Description
The Sumitomo 16GBCHE is a 4NC-DNGA150408 pcbn indexable insert, grade BNC300, TiN coated. Suited for hardened steel.
Specifications
Ansi insert codeDNGA432
Ansi size code432
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle55
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0827
Insert materialPCBN
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso code4NC-DNGA150408
Iso insert codeDNGA150408
Iso size code150408
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Number of cutting edges4
Primary workpiece materialHardened Steel
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
