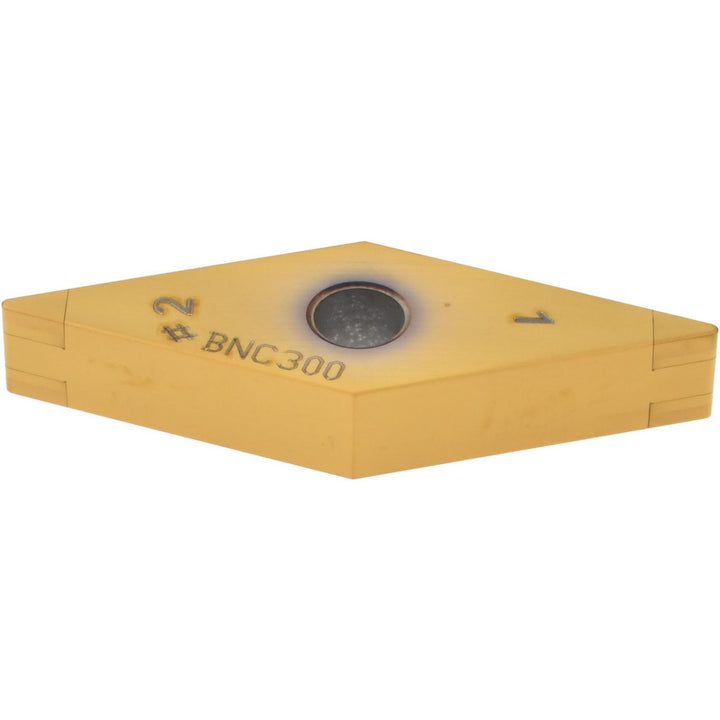

4NC-VNGA160404 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC300, TiN - Sumitomo 16GBCHK

Sumitomo

4NC-VNGA160404 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC300, TiN - Sumitomo 16GBCHK

MFR# 16GBCHKISO/ANSI# 4NC-VNGA160404Series VNGA

$123.37List $158.23 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBNC300
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiN

Description

The Sumitomo 16GBCHK is a 4NC-VNGA160404 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BNC300, TiN coated. Suited for cast iron, superalloy.

Specifications

Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1102
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code331
Insert style4NC-VNGA
Insert thickness in3/16
Iso code4NC-VNGA160404
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
