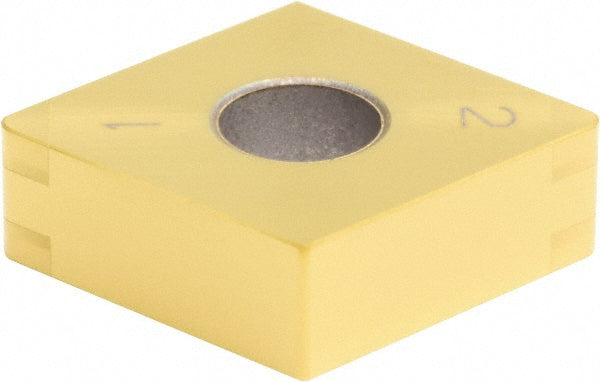

4NC-CNGA120408W Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC300, TiN - Sumitomo 16GBCHS

Sumitomo

4NC-CNGA120408W Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BNC300, TiN - Sumitomo 16GBCHS

MFR# 16GBCHSISO/ANSI# 4NC-CNGA120408WSeries C

$124.65List $159.87 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC300
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiN

Description

The Sumitomo 16GBCHS is a 4NC-CNGA120408W polycrystalline cubic boron nitride (pcbn) indexable insert, grade BNC300, TiN coated. Suited for hard material.

Specifications

Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0945
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code432
Insert style4NC-CNGA
Insert thickness in3/16
Iso code4NC-CNGA120408W
Manufacturer gradeBNC300
Maximum depth of cut0.0150
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
Wiper edgeYes
