Sumitomo

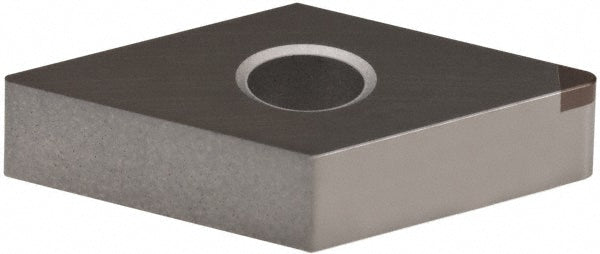

NU-DNMA150404 Polycrystalline Cubic Boron Nitride Insert, Grade BN350 - Sumitomo 16GC256
MFR# 16GC256ISO/ANSI# NU-DNMA150404Series D
$35.24List $45.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN350
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16GC256 is a NU-DNMA150404 polycrystalline cubic boron nitride indexable insert, grade BN350. Suited for hard material.
Specifications
Ansi codeNUDNMA431
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2030
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code431
Insert styleNU-DNMA
Insert thickness in3/16
Iso codeNU-DNMA150404
Manufacturer gradeBN350
Material gradeC2
Number of cutting edges1
Primary workpiece materialHard Material
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
