Sumitomo

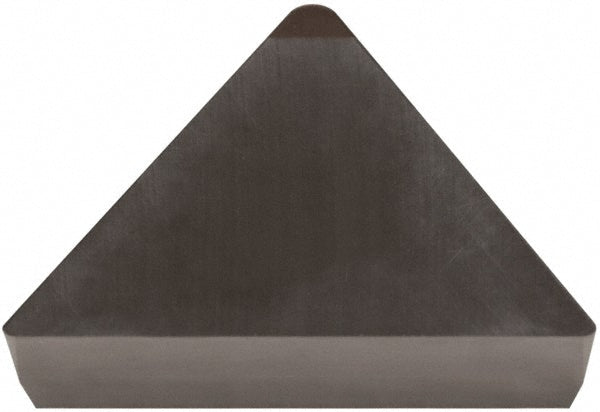

NU-TPGN160304 PCBN Insert, Grade BN350 - Sumitomo 16GC282
MFR# 16GC282ISO/ANSI# NU-TPGN160304Series TPG
$40.84List $52.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeBN350
MaterialPCBN
Description
The Sumitomo 16GC282 is a NU-TPGN160304 pcbn indexable insert, grade BN350. Suited for cast iron, hard material, superalloy.
Specifications
Ansi size code321
Chip breakerN
Clearance codeP
Coating processUncoated
Corner radius in1/64
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.0906
Insert materialPCBN
Insert shapeT - Triangle
Insert size code321
Insert styleTPG
Insert thickness in1/8
Iso codeNU-TPGN160304
Iso size code160304
Manufacturer gradeBN350
Material gradeC2
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle11
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeG
