Sumitomo

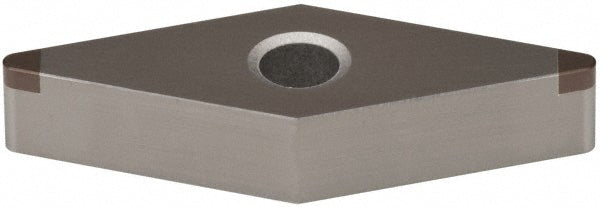

2NU-VNGA160408 Polycrystalline Cubic Boron Nitride Insert, Grade BN350 - Sumitomo 16GCAVT
MFR# 16GCAVTISO/ANSI# 2NU-VNGA160408Series VNGA
$61.77List $79.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN350
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16GCAVT is a 2NU-VNGA160408 polycrystalline cubic boron nitride indexable insert, grade BN350. Suited for cast iron, steel, superalloy.
Specifications
Ansi code2NUVNGA332
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code332
Insert style2NU-VNGA
Insert thickness in3/16
Iso code2NU-VNGA160408
Manufacturer gradeBN350
Material gradeC2
Number of cutting edges2
Primary workpiece materialCast Iron; Steel; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
