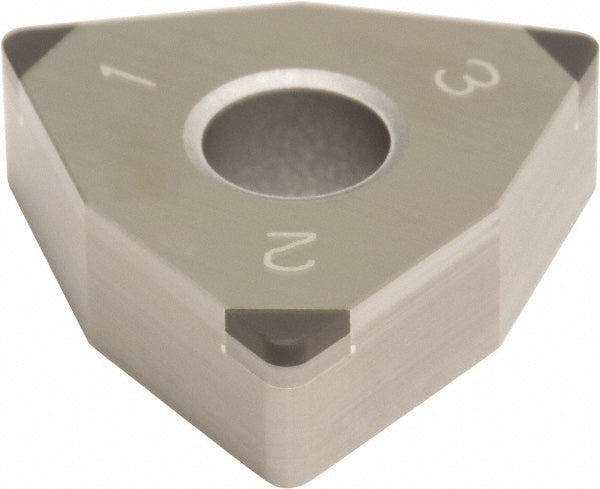

3NU-WNGA080412 PCBN Insert, Grade BN350 - Sumitomo 16GCW3N
MFR# 16GCW3NISO/ANSI# WNGA080402Series W
$81.12List $104.05
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeBN350
MaterialPCBN
Description
The Sumitomo 16GCW3N is a 3NU-WNGA080412 pcbn indexable insert, grade BN350. Suited for steel.
Specifications
Ansi insert codeWNGA432
Ansi size code432
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPCBN
Insert shapeW - Trigon 80-Deg
Insert size code432
Insert styleWNGA
Insert thickness in3/16
Iso code3NU-WNGA080412
Iso insert codeWNGA080402
Iso size code080402
Manufacturer gradeBN350
Maximum depth of cut0.0150
Number of cutting edges3
Primary workpiece materialSteel
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeG
