Sumitomo

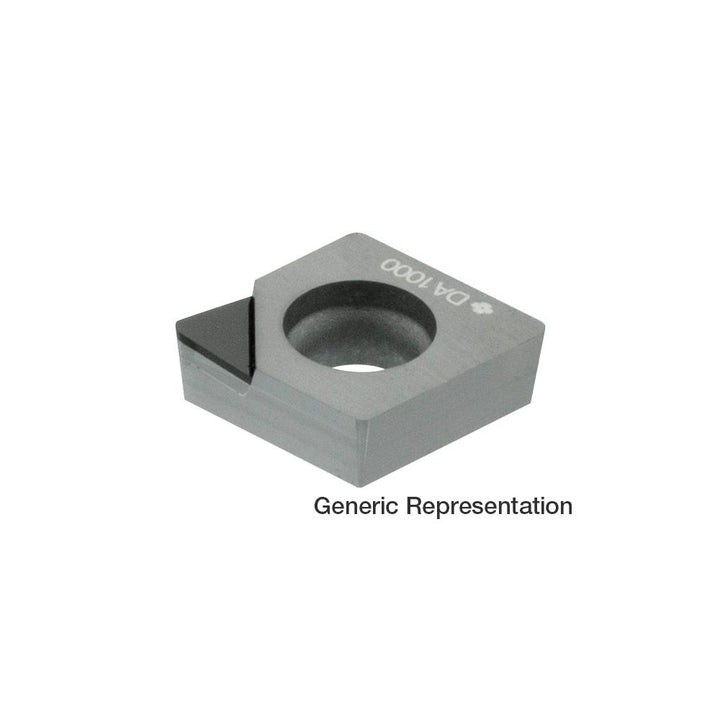

NF-CCMT09T304 Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQBZC
MFR# 16HQBZCISO/ANSI# NF-CCMT09T304Series C
$49.02List $61.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQBZC is a NF-CCMT09T304 polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFCCMX32.51
Chip breakerX
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1732
Included angle80.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.1102
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code32.51
Insert styleNF-CCMX
Insert thickness in5/32
Iso codeNF-CCMT09T304
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
