Sumitomo

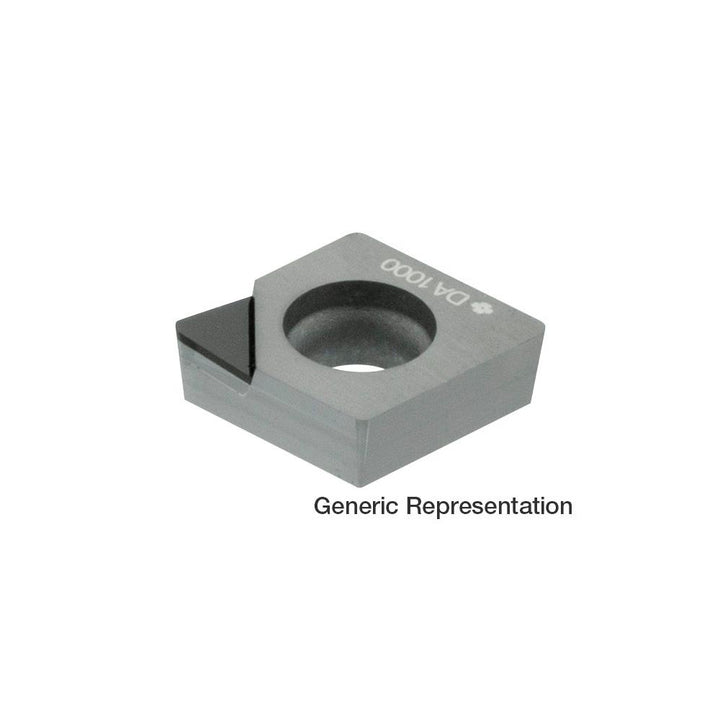

NF-CCMT060202 PCD Insert, Grade DA1000 - Sumitomo 16HQBZY
MFR# 16HQBZYISO/ANSI# CCMX060202Series C
$44.27List $53.09
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA1000
MaterialPCD
Description
The Sumitomo 16HQBZY is a NF-CCMT060202 pcd indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi insert codeCCMX21.50.5
Ansi size code21.50.5
Chip breakerX
Clearance codeC
Coating processUncoated
Corner radius0.0078
Grade characteristicsAluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.1102
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.50.5
Insert styleCCMX
Insert thickness in3/32
Iso codeNF-CCMT060202
Iso insert codeCCMX060202
Iso size code060202
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
