Sumitomo

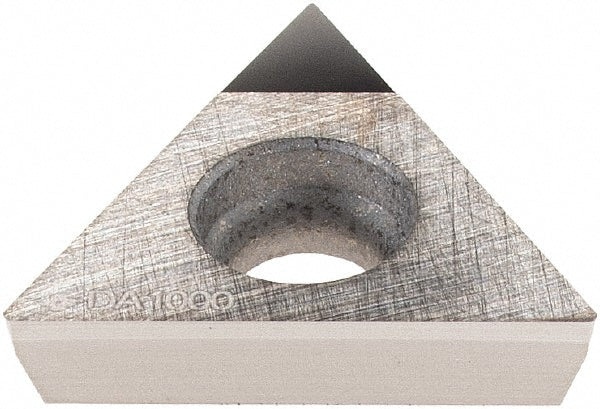

NF-TPGW110201 Polycrystalline Diamond Insert, Grade DA1000, Coated - Sumitomo 16HQCCC
MFR# 16HQCCCISO/ANSI# NF-TPGW110201Series TPG
$42.99List $51.54
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeDA1000
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16HQCCC is a NF-TPGW110201 polycrystalline diamond indexable insert, grade DA1000, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFTPGA21.50
Chip breakerNF
Clearance codeP
Coating finishCoated
Coating processUncoated
Corner radius0.0039
Hole diameter0.1070
Included angle60.0
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.1220
Insert materialPolycrystalline Diamond
Insert shapeTriangle
Insert size code21.5
Insert styleNF-TPGA
Insert thickness in3/32
Iso codeNF-TPGW110201
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
