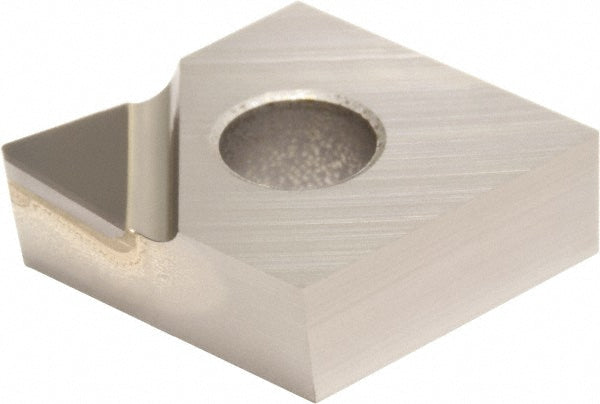

NF-CNMX120404 PCD Insert, Grade DA1000, Coated - Sumitomo 16HQCCG
MFR# 16HQCCGISO/ANSI# CNMX120404Series C
$65.11List $78.08
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA1000
MaterialPCD
CoatingCoated
Description
The Sumitomo 16HQCCG is a NF-CNMX120404 pcd indexable insert, grade DA1000, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeCNMX431
Ansi size code431
Chip breakerX
Clearance codeN
Coating finishCoated
Coating processUncoated
Corner radius in1/64
Grade characteristicsAluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Hole diameter0.2031
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2244
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNMX
Insert thickness in3/16
Iso codeNF-CNMX120404
Iso insert codeCNMX120404
Iso size code120404
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
