Sumitomo

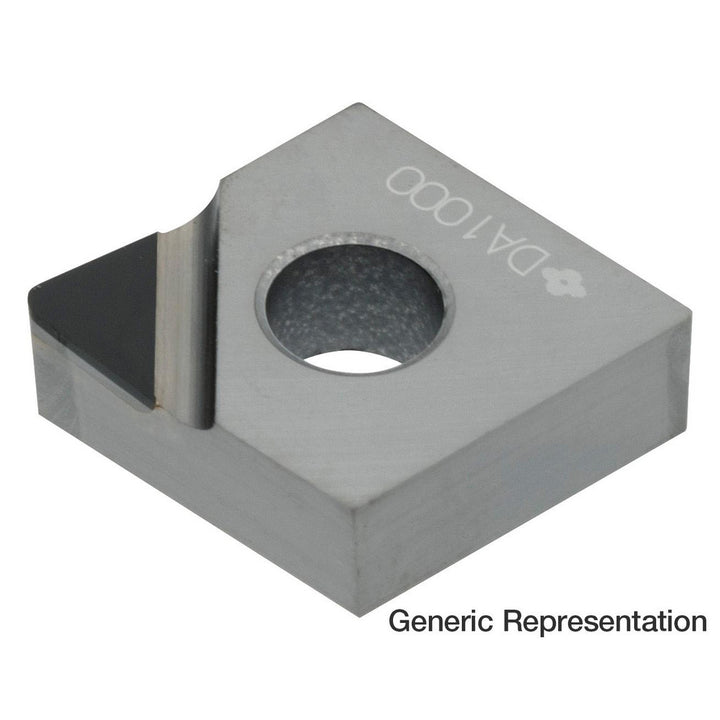

NF-CNMX120408 Polycrystalline Diamond Insert, Grade DA1000, Coated - Sumitomo 16HQCCH
MFR# 16HQCCHISO/ANSI# NF-CNMX120408Series C
$65.11List $78.08
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16HQCCH is a NF-CNMX120408 polycrystalline diamond indexable insert, grade DA1000, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFCNMX432
Chip breakerX
Clearance codeN
Coating finishCoated
Coating processUncoated
Corner radius in1/32
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2205
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code432
Insert styleNF-CNMX
Insert thickness in3/16
Iso codeNF-CNMX120408
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
