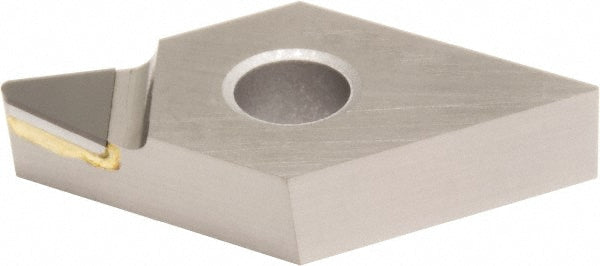

NF-DNMX150404 Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQCCL
MFR# 16HQCCLISO/ANSI# NF-DNMX150404Series D
$69.01List $82.75
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQCCL is a NF-DNMX150404 polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFDNMX431
Chip breakerX
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2441
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code431
Insert styleNF-DNMX
Insert thickness in3/16
Iso codeNF-DNMX150404
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
