Sumitomo

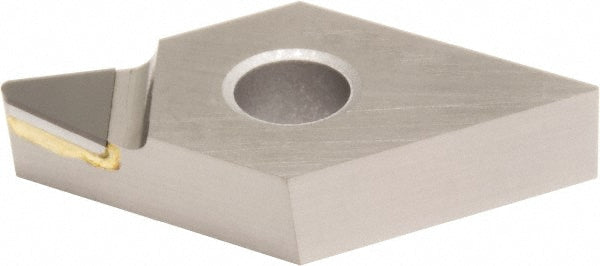

NF-DNMX150408 Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQCCM
MFR# 16HQCCMISO/ANSI# NF-DNMX150408Series D
$69.01List $82.75
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQCCM is a NF-DNMX150408 polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFDNMX432
Chip breakerX
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.2283
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code432
Insert styleNF-DNMX
Insert thickness in3/16
Iso codeNF-DNMX150408
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
