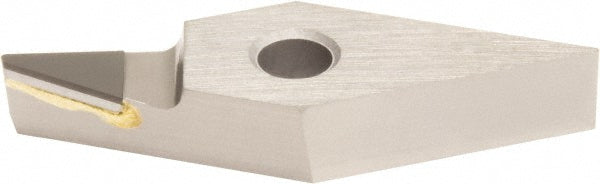

NF-VNMX160402 PCD Insert, Grade DA1000, Coated - Sumitomo 16HQCCS
MFR# 16HQCCSISO/ANSI# VNMX160402Series V
$72.93List $87.45
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeDA1000
MaterialPCD
CoatingCoated
Description
The Sumitomo 16HQCCS is a NF-VNMX160402 pcd indexable insert, grade DA1000, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi insert codeVNMX330.5
Ansi size code330.5
Chip breakerX
Clearance codeN
Coating finishCoated
Coating processUncoated
Corner radius0.0078
Grade characteristicsAluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2717
Insert materialPCD
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code330.5
Insert styleVNMX
Insert thickness in3/16
Iso codeNF-VNMX160402
Iso insert codeVNMX160402
Iso size code160402
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
