Sumitomo

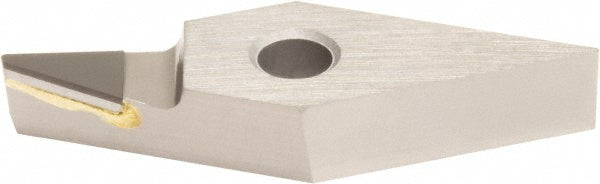

NF-VNMX160404 Polycrystalline Diamond Insert, Grade DA1000, Coated - Sumitomo 16HQCCT
MFR# 16HQCCTISO/ANSI# NF-VNMX160404Series V
$72.93List $87.45
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
CoatingCoated
Description
The Sumitomo 16HQCCT is a NF-VNMX160404 polycrystalline diamond indexable insert, grade DA1000, Coated coated. Suited for non-ferrous metal.
Specifications
Ansi codeNFVNMX331
Chip breakerX
Clearance codeN
Coating finishCoated
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.2520
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code331
Insert styleNF-VNMX
Insert thickness in3/16
Iso codeNF-VNMX160404
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle10
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
