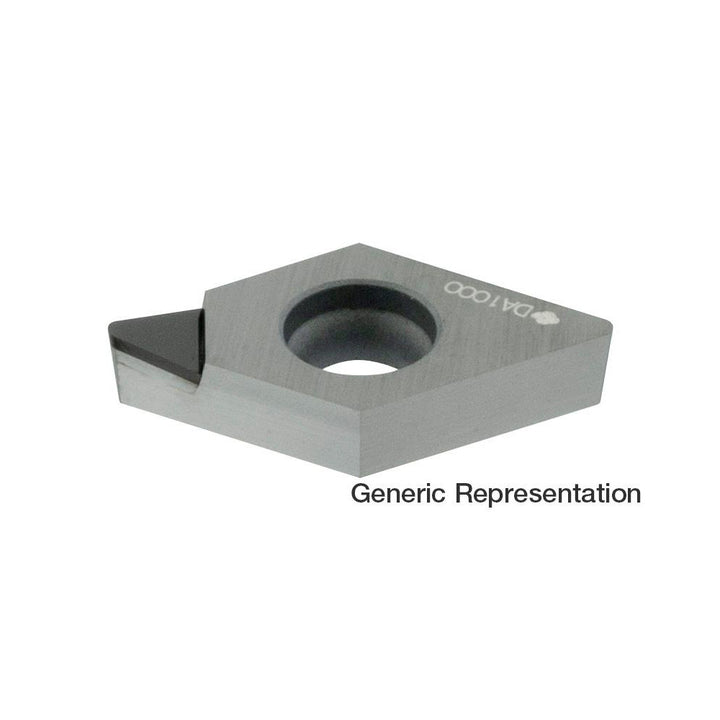

NF-DCMT11T308 Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQCDC
MFR# 16HQCDCISO/ANSI# NF-DCMT11T308Series D
$45.60List $54.67
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQCDC is a NF-DCMT11T308 polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFDCMX32.52
Chip breakerX
Clearance codeC
Coating processUncoated
Corner radius in1/32
Hole diameter0.1732
Included angle55.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.0945
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code32.52
Insert styleNF-DCMX
Insert thickness in5/32
Iso codeNF-DCMT11T308
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle7
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
