Sumitomo

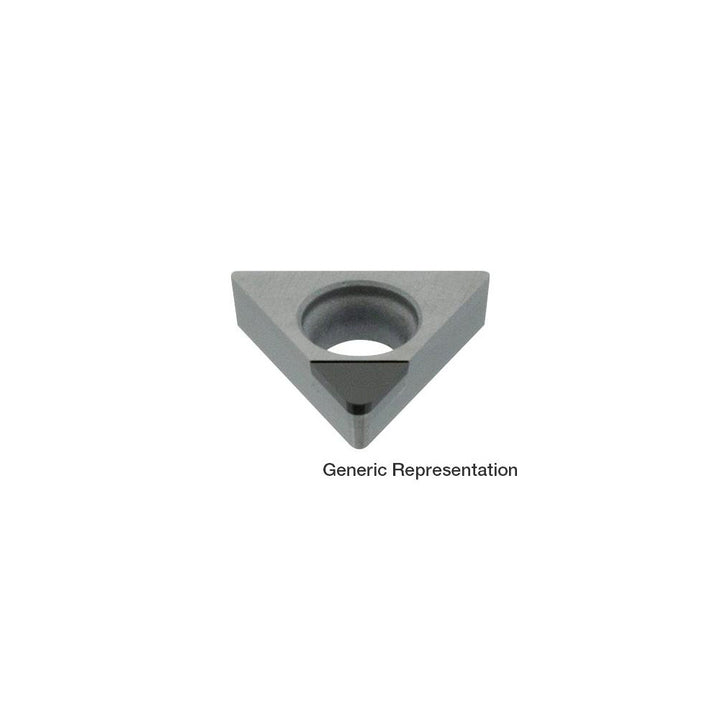

NF-TPGW160302 PCD Insert, Grade DA1000, Coated - Sumitomo 16HQCDS
MFR# 16HQCDSISO/ANSI# NF-TPGW160302Series TPG
$49.02List $61.78
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeDA1000
MaterialPCD
CoatingCoated
Description
The Sumitomo 16HQCDS is a NF-TPGW160302 pcd indexable insert, grade DA1000, Coated coated. Suited for non-ferrous metal.
Specifications
Chip breakerNF
Clearance codeP
Coating finishCoated
Coating processUncoated
Corner radius0.0078
Hole diameter0.1693
Included angle60
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.1220
Insert materialPCD
Insert shapeTriangle
Insert size code320
Insert styleNF-TPGA
Insert thickness in1/8
Iso codeNF-TPGW160302
Manufacturer gradeDA1000
Primary workpiece materialNon-Ferrous Metal
RakeNeutral
Rake angle0
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
