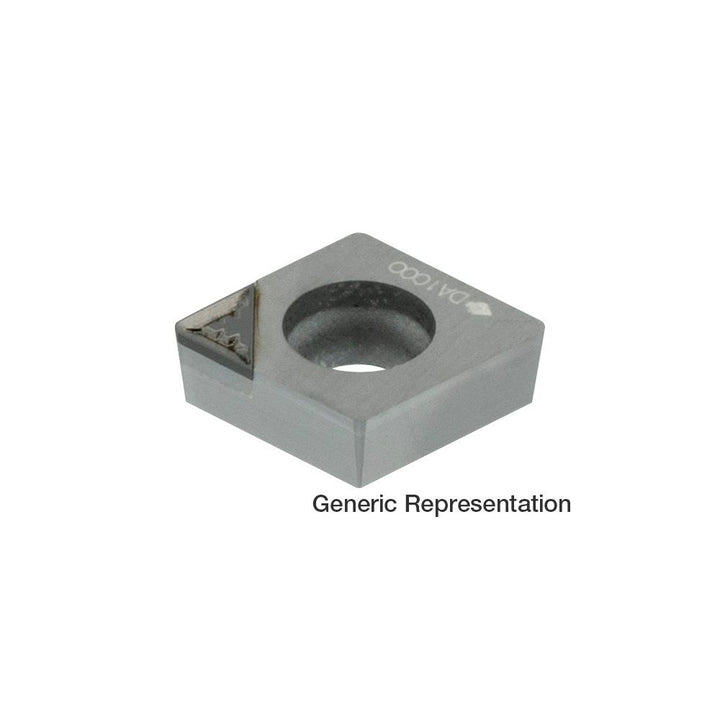

NF-CCMT060204N-LD PCD Insert, Grade DA1000 - Sumitomo 16HQEEW

Sumitomo

NF-CCMT060204N-LD PCD Insert, Grade DA1000 - Sumitomo 16HQEEW

MFR# 16HQEEWISO/ANSI# CCMT060204Cat# NF-CCMT21.51LD-DA1000Series C

$57.54List $69.00 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
GradeDA1000
MaterialPCD

Description

The Sumitomo 16HQEEW is a NF-CCMT060204N-LD pcd indexable insert, grade DA1000. Suited for non-ferrous metal.

Specifications

Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerLD
Clearance codeC
Coating processUncoated
Corner radius in1/64
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.1142
Insert materialPCD
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeNF-CCMT060204N-LD
Iso insert codeCCMT060204
Iso size code060204
Manufacturers catalog numberNF-CCMT21.51LD-DA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
