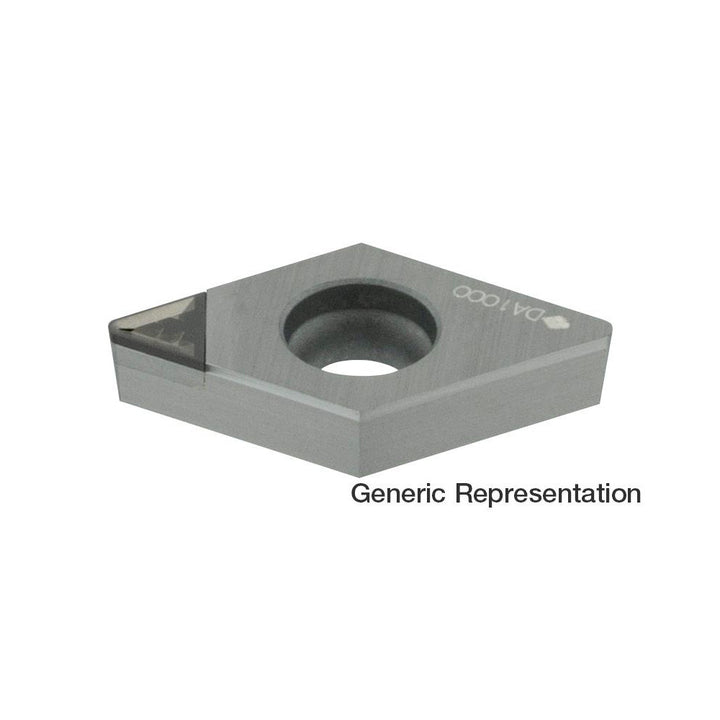

NF-DCMT11T302N-LD PCD Insert, Grade DA1000 - Sumitomo 16HQEFD

Sumitomo

NF-DCMT11T302N-LD PCD Insert, Grade DA1000 - Sumitomo 16HQEFD

MFR# 16HQEFDISO/ANSI# DCMT11T302Cat# NF-DCMT32.50.5LD-DA1000Series D

$59.25List $71.05 Save 16%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeDA1000
MaterialPCD

Description

The Sumitomo 16HQEFD is a NF-DCMT11T302N-LD pcd indexable insert, grade DA1000. Suited for non-ferrous metal.

Specifications

Ansi insert codeDCMT32.50.5
Ansi size code32.50.5
Chip breakerT
Clearance codeC
Coating processUncoated
Corner radius0.0078
Full radiusNo
Grade characteristicsAluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.1220
Insert materialPCD
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code32.50.5
Insert styleDCMT
Insert thickness in5/32
Iso codeNF-DCMT11T302N-LD
Iso insert codeDCMT11T302
Iso size code11T302
Manufacturers catalog numberNF-DCMT32.50.5LD-DA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
StandardsANSI; ISO 13399
Tolerance codeM
