Sumitomo

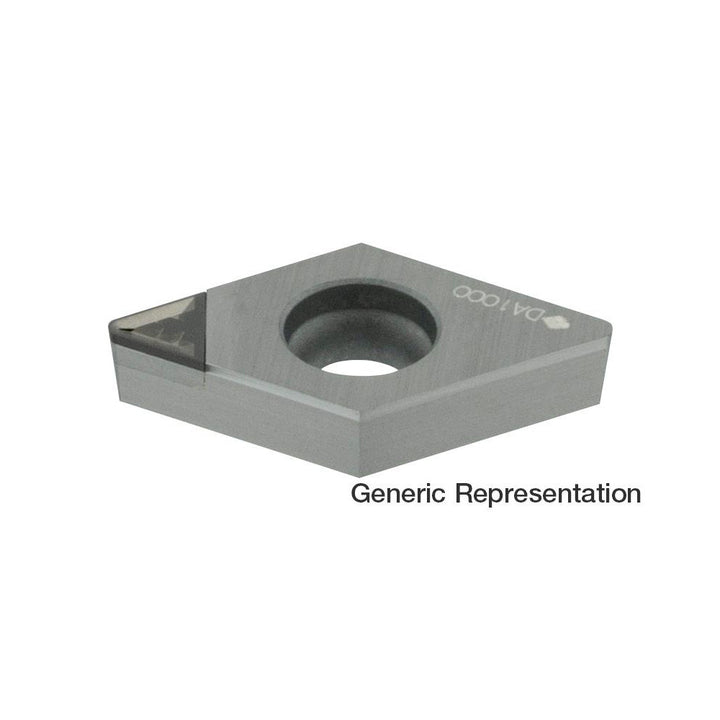

NF-DCMT11T308N-LD PCD Insert, Grade DA1000 - Sumitomo 16HQEFF
MFR# 16HQEFFISO/ANSI# NF-DCMT11T308N-LDCat# NF-DCMT32.52LD-DA1000Series D
$59.25List $71.05
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPCD
Description
The Sumitomo 16HQEFF is a NF-DCMT11T308N-LD pcd indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Chip breakerT
Clearance codeC
Coating processUncoated
Corner radius in1/32
Full radiusNo
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.0984
Insert materialPCD
Insert shapeDiamond
Insert size code32.52
Insert styleDCMT
Insert thickness in5/32
Iso codeNF-DCMT11T308N-LD
Manufacturers catalog numberNF-DCMT32.52LD-DA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
