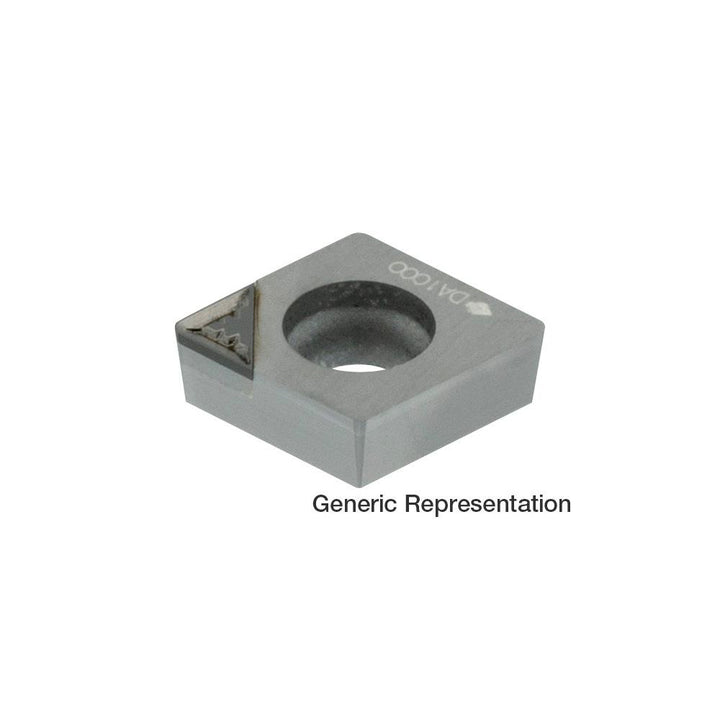

NF-CCMT09T304N-GD Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQEGD
MFR# 16HQEGDISO/ANSI# NF-CCMT09T304N-GDCat# NF-CCMT32.51GD-DA1000Series C
$59.25List $71.05
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQEGD is a NF-CCMT09T304N-GD polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFCCMT32.51GD
Chip breakerGD
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.1142
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeNF-CCMT09T304N-GD
Manufacturers catalog numberNF-CCMT32.51GD-DA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
