Sumitomo

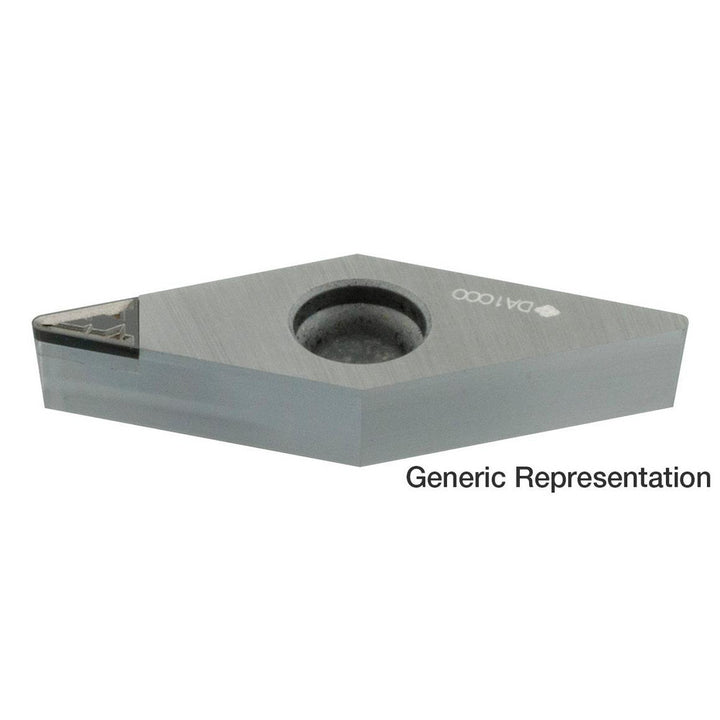

NF-VCMT160404N-GD Polycrystalline Diamond Insert, Grade DA1000 - Sumitomo 16HQEHB
MFR# 16HQEHBISO/ANSI# NF-VCMT160404N-GDCat# NFVCMT331GDDA1000Series V
$94.80List $113.67
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeDA1000
MaterialPolycrystalline Diamond
Description
The Sumitomo 16HQEHB is a NF-VCMT160404N-GD polycrystalline diamond indexable insert, grade DA1000. Suited for non-ferrous metal.
Specifications
Ansi codeNFVCMT331GD
Chip breakerGD
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting directionNeutral
Full radiusNo
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodPin; Screw
Insert length0.2559
Insert materialPolycrystalline Diamond
Insert shapeDiamond
Insert size code331
Insert styleVCMT
Insert thickness in3/16
Iso codeNF-VCMT160404N-GD
Manufacturers catalog numberNFVCMT331GDDA1000
Manufacturer gradeDA1000
Material gradePCD
Multi use toolYes
Primary workpiece materialNon-Ferrous Metal
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeM
