Sumitomo

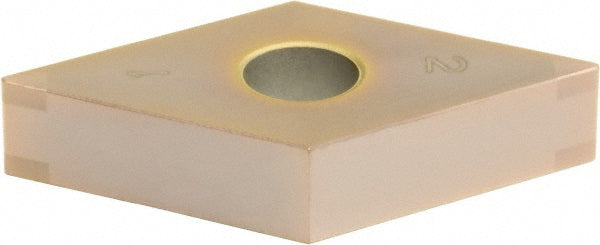

4NC-DNGA150404 Polycrystalline Cubic Boron Nitride Insert, Grade BNC160, TiN - Sumitomo 16HUCED
MFR# 16HUCEDISO/ANSI# 4NC-DNGA150404Series D
$123.69List $155.89
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBNC160
MaterialPolycrystalline Cubic Boron Nitride
CoatingTiN
Description
The Sumitomo 16HUCED is a 4NC-DNGA150404 polycrystalline cubic boron nitride indexable insert, grade BNC160, TiN coated.
Specifications
Ansi code4NCDNGA431
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code431
Insert style4NC-DNGA
Insert thickness in3/16
Iso code4NC-DNGA150404
Manufacturer gradeBNC160
Maximum depth of cut0.0150
Number of cutting edges4
RakeNegative
Relief angle0
Secondary workpiece materialHard Material
StandardsANSI; ISO 13399
Tolerance codeG
