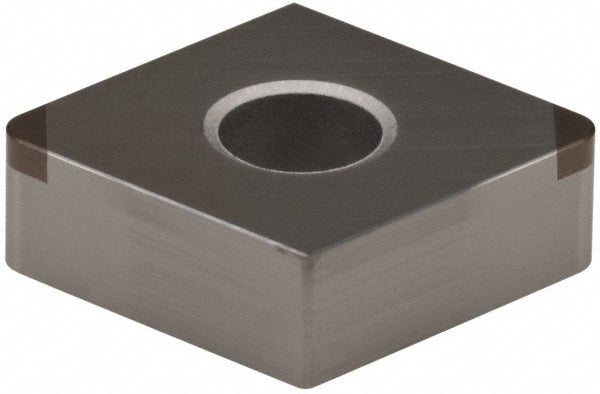

2NU-CNGA120412 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCTT
MFR# 16JRCTTISO/ANSI# 2NU-CNGA120412Series C
$58.01List $74.40
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCTT is a 2NU-CNGA120412 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hardened steel.
Specifications
Ansi code2NUCNGA433
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in3/64
Hole diameter0.2030
Included angle80.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0906
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code433
Insert style2NU-CNGA
Insert thickness in3/16
Iso code2NU-CNGA120412
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges2
Primary workpiece materialHardened Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
