Sumitomo

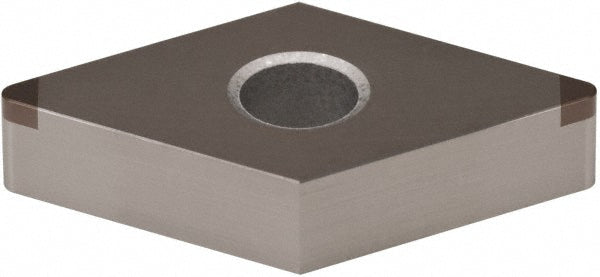

2NU-DNGA150404 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCTU
MFR# 16JRCTUISO/ANSI# 2NU-DNGA150404Series D
$63.21List $81.07
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCTU is a 2NU-DNGA150404 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hardened steel.
Specifications
Ansi code2NUDNGA431
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2030
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code431
Insert style2NU-DNGA
Insert thickness in3/16
Iso code2NU-DNGA150404
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges2
Primary workpiece materialHardened Steel
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
