Sumitomo

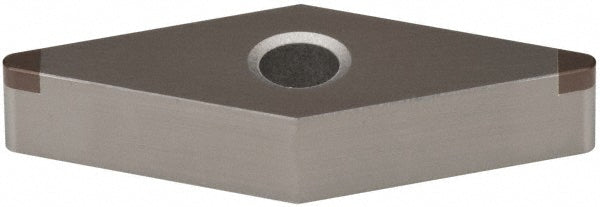

2NU-VNGA160404 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCUA
MFR# 16JRCUAISO/ANSI# 2NU-VNGA160404Series VNGA
$61.77List $79.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCUA is a 2NU-VNGA160404 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for cast iron, hardened steel, superalloy.
Specifications
Ansi code2NUVNGA331
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1102
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code331
Insert style2NU-VNGA
Insert thickness in3/16
Iso code2NU-VNGA160404
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges2
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
