Sumitomo

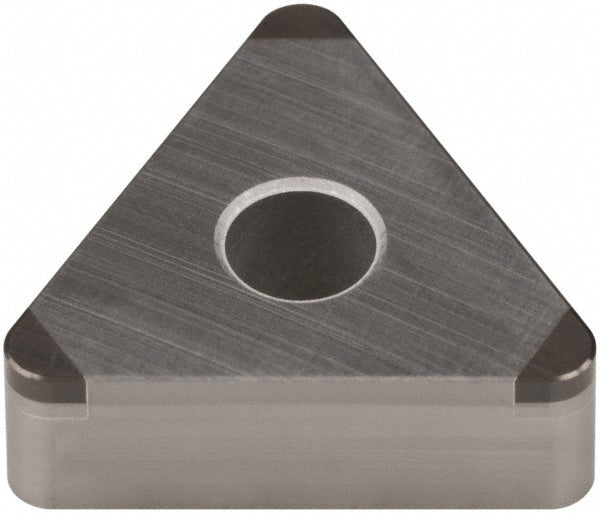

3NU-TNGA160412 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCUE
MFR# 16JRCUEISO/ANSI# 3NU-TNGA160412Series T
$77.38List $99.24
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCUE is a 3NU-TNGA160412 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hardened steel.
Specifications
Ansi code3NUTNGA333
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in3/64
Hole diameter0.1500
Included angle60.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code333
Insert style3NU-TNGA
Insert thickness in3/16
Iso code3NU-TNGA160412
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges3
Primary workpiece materialHardened Steel
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeG
