Sumitomo

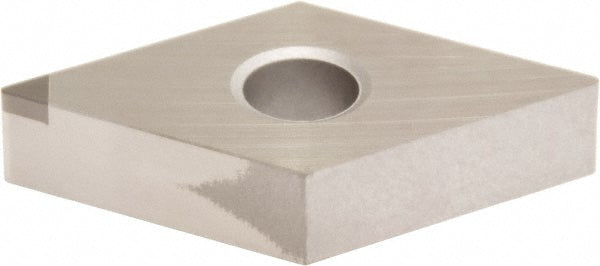

NU-DNMA150401 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCVC
MFR# 16JRCVCISO/ANSI# NU-DNMA150401Series D
$35.24List $45.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCVC is a NU-DNMA150401 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi codeNUDNMA430
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius0.0039
Hole diameter0.2031
Included angle55.0
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.1063
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code430
Insert styleNU-DNMA
Insert thickness in3/16
Iso codeNU-DNMA150401
Manufacturer gradeBN2000
Maximum depth of cut0.0150
Number of cutting edges1
Primary workpiece materialHard Material
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
