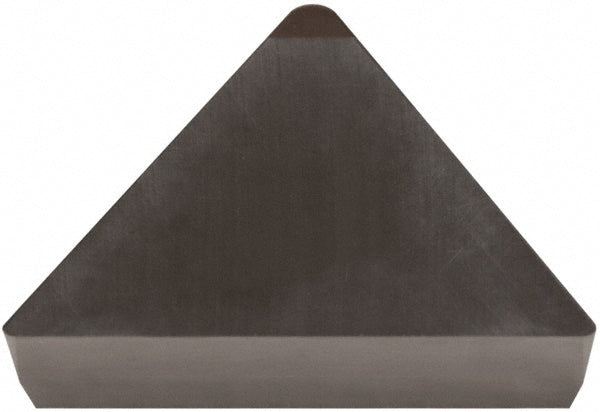

NU-TPGN160304 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCVX
MFR# 16JRCVXISO/ANSI# NU-TPGN160304Series TPG
$40.84List $52.37
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCVX is a NU-TPGN160304 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for cast iron, hard material, superalloy.
Specifications
Ansi codeNUTPG321
Chip breakerN
Clearance codeP
Coating processUncoated
Corner radius in1/64
Included angle60.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.0906
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code321
Insert styleNU-TPG
Insert thickness in1/8
Iso codeNU-TPGN160304
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
