Sumitomo

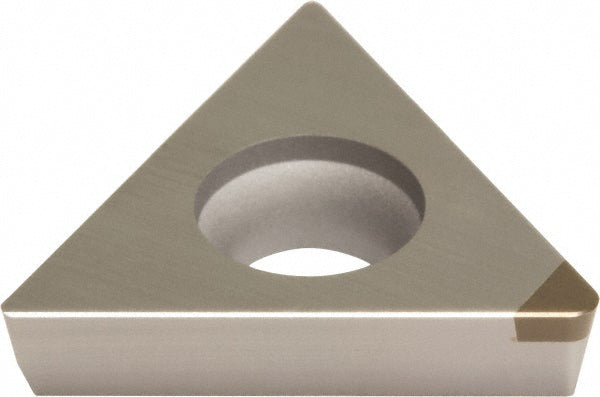

NU-TPGW080204 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN2000 - Sumitomo 16JRCWB
MFR# 16JRCWBISO/ANSI# NU-TPGW080204Series T
$40.41List $51.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Sumitomo 16JRCWB is a NU-TPGW080204 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BN2000. Suited for steel.
Specifications
Chip breakerD
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.0900
Included angle60
Inscribed circle in3/16
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeTriangle
Insert size code631
Insert styleNU-TPGD
Insert thickness in3/16
Iso codeNU-TPGW080204
Manufacturer gradeBN2000
Maximum depth of cut0.0150
Number of cutting edges1
Primary workpiece materialSteel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
