Sumitomo

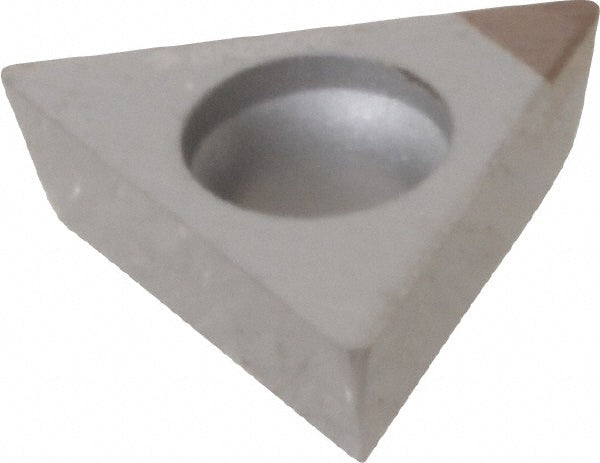

NU-TPGW110304 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCWG
MFR# 16JRCWGISO/ANSI# NU-TPGW110304Series T
$40.41List $51.83
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCWG is a NU-TPGW110304 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi codeNUTPGA221
Chip breakerA
Clearance codeP
Coating processUncoated
Corner radius in1/64
Hole diameter0.1300
Included angle60.0
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code221
Insert styleNU-TPGA
Insert thickness in1/8
Iso codeNU-TPGW110304
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges1
Primary workpiece materialHard Material
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
