Sumitomo

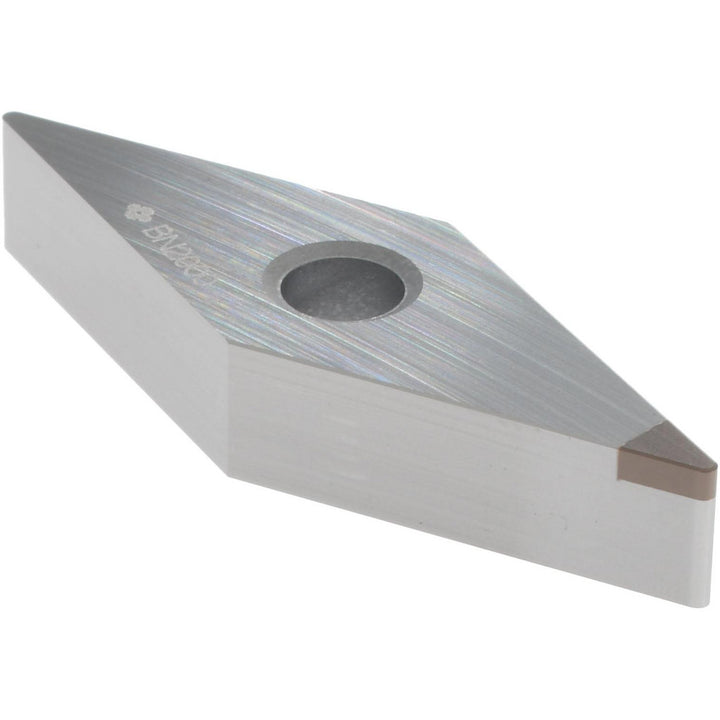

NU-VNMA160404 PCBN Insert, Grade BN2000 - Sumitomo 16JRCWQ
MFR# 16JRCWQISO/ANSI# VNMA160404Series V
$33.31List $42.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeBN2000
MaterialPCBN
Description
The Sumitomo 16JRCWQ is a NU-VNMA160404 pcbn indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi insert codeVNMA331
Ansi size code331
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Grade characteristicsHardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1500
Included angle35
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.1102
Insert materialPCBN
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVNMA
Insert thickness in3/16
Iso codeNU-VNMA160404
Iso insert codeVNMA160404
Iso size code160404
Manufacturer gradeBN2000
Material gradeC2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
Side clearanceNegative
StandardsANSI; ISO 13399
Tolerance codeM
