Sumitomo

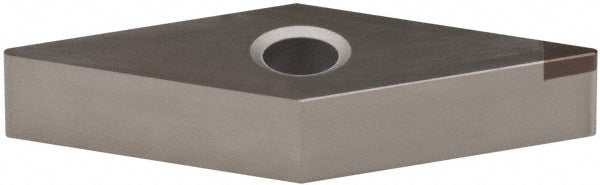

NU-VNMA160408 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCWR
MFR# 16JRCWRISO/ANSI# NU-VNMA160408Series V
$33.31List $42.73
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCWR is a NU-VNMA160408 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi codeNUVNMA332
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/32
Hole diameter0.1500
Included angle35.0
Inscribed circle in3/8
Insert holding methodClamp; Pin
Insert length0.0787
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code332
Insert styleNU-VNMA
Insert thickness in3/16
Iso codeNU-VNMA160408
Manufacturer gradeBN2000
Material gradeC2
Primary workpiece materialHard Material
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
