Sumitomo

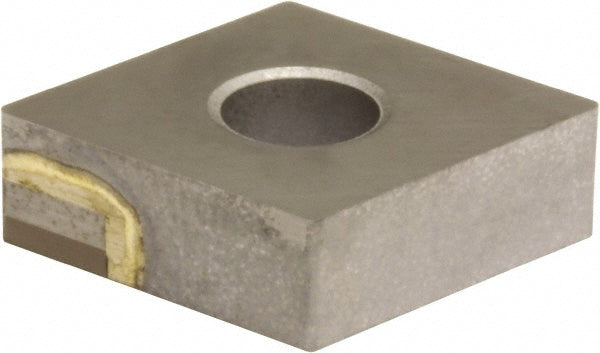

CNMA120404 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCWX
MFR# 16JRCWXISO/ANSI# CNMA120404Series CN
$63.44List $81.36
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCWX is a CNMA120404 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi codeCNMA431
Chip breakerA
Clearance codeN
Coating processUncoated
Corner radius in1/64
Hole diameter0.2031
Included angle80.0
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code431
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA120404
Manufacturer gradeBN2000
Primary workpiece materialHard Material
RakeNegative
Relief angle0
StandardsANSI; ISO 13399
Tolerance codeM
