Sumitomo

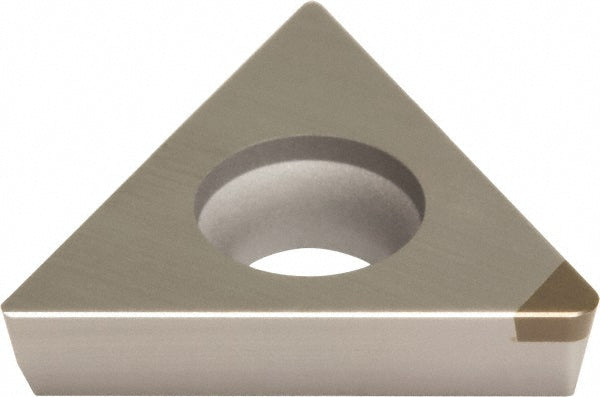

NU-TPGW080208 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRCYU
MFR# 16JRCYUISO/ANSI# NU-TPGW080208Series T
$46.47List $58.57
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/16
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRCYU is a NU-TPGW080208 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hardened steel.
Specifications
Ansi codeNUTPGD632
Chip breakerD
Clearance codeP
Coating processUncoated
Corner radius in1/32
Hole diameter0.0900
Included angle60.0
Inscribed circle in3/16
Insert holding methodScrew
Insert length0.0866
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code632
Insert styleNU-TPGD
Insert thickness in3/16
Iso codeNU-TPGW080208
Manufacturer gradeBN2000
Maximum depth of cut0.0150
Number of cutting edges1
Primary workpiece materialHardened Steel
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
