Sumitomo

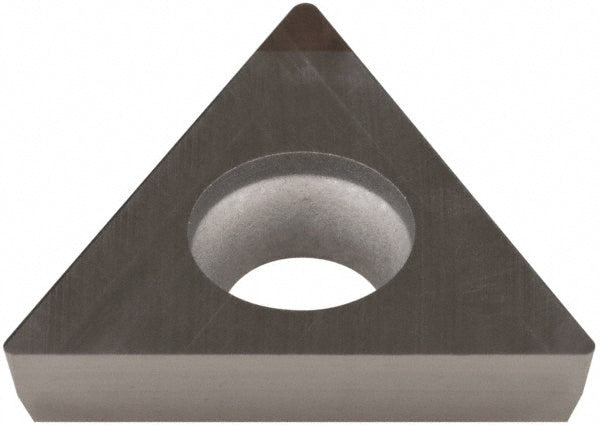

NU-TPGW160308 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRDAA
MFR# 16JRDAAISO/ANSI# NU-TPGW160308Series T
$44.38List $56.91
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRDAA is a NU-TPGW160308 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for hard material.
Specifications
Ansi codeNUTPGA322
Chip breakerA
Clearance codeP
Coating processUncoated
Corner radius in1/32
Hole diameter0.1690
Included angle60.0
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.0787
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeTriangle
Insert size code322
Insert styleNU-TPGA
Insert thickness in1/8
Iso codeNU-TPGW160308
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges1
Primary workpiece materialHard Material
RakePositive
Relief angle11
StandardsANSI; ISO 13399
Tolerance codeG
