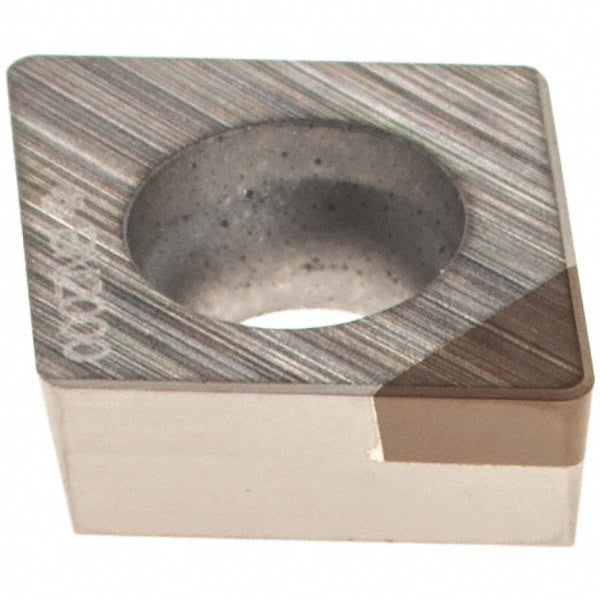

NU-CCGW060204 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN2000 - Sumitomo 16JRW6F

Sumitomo

NU-CCGW060204 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BN2000 - Sumitomo 16JRW6F

MFR# 16JRW6FISO/ANSI# NU-CCGW060204Series CCG

$44.58List $57.17 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride (PCBN)

Description

The Sumitomo 16JRW6F is a NU-CCGW060204 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BN2000. Suited for cast iron, hard material, superalloy.

Specifications

Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius in1/64
Hole diameter0.1100
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond
Insert size code21.5
Insert styleNU-CCGA
Insert thickness in3/32
Iso codeNU-CCGW060204
Manufacturer gradeBN2000
Maximum depth of cut0.0150
Number of cutting edges1
Primary workpiece materialCast Iron; Hard Material; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
