Sumitomo

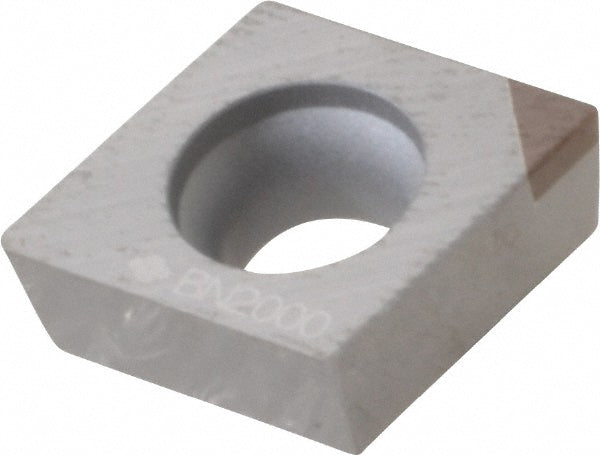

NU-CCGW09T302 Polycrystalline Cubic Boron Nitride Insert, Grade BN2000 - Sumitomo 16JRW6L
MFR# 16JRW6LISO/ANSI# NU-CCGW09T302Series CCG
$48.96List $62.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeBN2000
MaterialPolycrystalline Cubic Boron Nitride
Description
The Sumitomo 16JRW6L is a NU-CCGW09T302 polycrystalline cubic boron nitride indexable insert, grade BN2000. Suited for cast iron, hardened steel, superalloy.
Specifications
Ansi codeNUCCGA32.50.5
Chip breakerA
Clearance codeC
Coating processUncoated
Corner radius0.0078
Hole diameter0.1730
Included angle80.0
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0984
Insert materialPolycrystalline Cubic Boron Nitride
Insert shapeDiamond
Insert size code32.5
Insert styleNU-CCGA
Insert thickness in5/32
Iso codeNU-CCGW09T302
Manufacturer gradeBN2000
Material gradeC2
Number of cutting edges1
Primary workpiece materialCast Iron; Hardened Steel; Superalloy
RakePositive
Relief angle7
StandardsANSI; ISO 13399
Tolerance codeG
